Ferrite Transformers

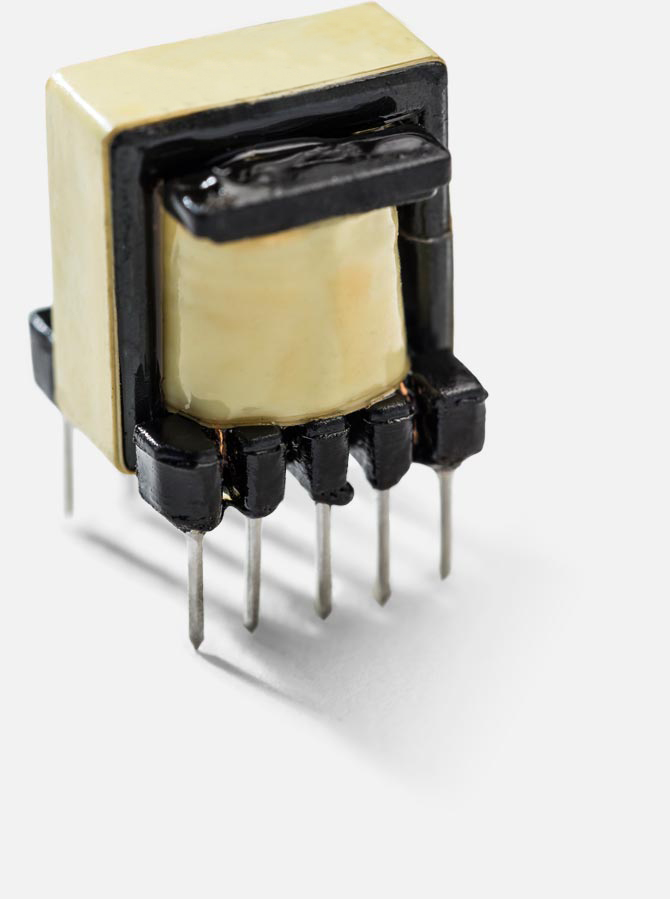

EE1306 / 10P / VERTICAL

feature

EE1306 / 10P / VERTICAL

    10 PINS
    VERTICAL BOBBIN

In this section, we have listed core and bobbin geometries that are most commonly used to build switching transformers. Do reach out to us if you need a specific size that isn't listed here. You may use the data provided to finalize the transformer design and request a quote and samples. Footprint data provided is subject to change so check with us before you finalize your PCB layout on this basis.

TECH SPECS

OPTIONS A
Option 1 10.5±0.5
Option 2 8.5±0.5


feature
Winding Width 7.5mm
Winding Height 2.1mm
Core Ae 16.7 sq.mm
Core Le 30.4 mm

Notes

  • RoHS 3 compliance is available on most products, subject to our confirmation.
  • Specifications subject to change without notice.
