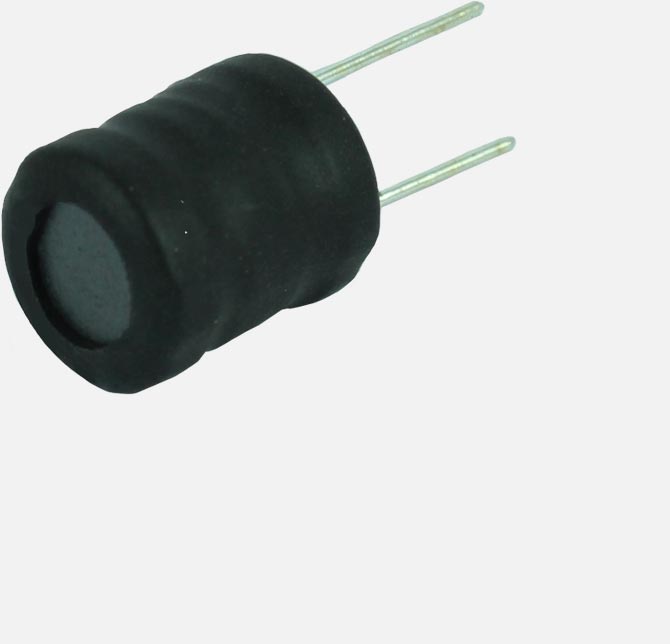

| PART # | DRUM CORE | INDUCTANCE @1KHZ 0.3V (µH) |
DC RESISTANCE @200°C (MΩ) (MAX) |
RATED CURRENT (RMS) (MA) |
|---|---|---|---|---|
| 122001 | 10x12 | 3.3±20% | 10 | 3000 |
| 037401 | 10x12 | 10.0±20% | 15 | 2900 |
| 133201 | 10x12 | 15.0±20% | 35 | 2300 |
| 060801 | 10x12 | 33.0±20% | 45 | 1500 |
| 116601 | 10x12 | 52.0±20% | 80 | 1300 |
| 130401 | 10x12 | 90.0±20% | 120 | 900 |
| 060101 | 10x12 | 120.0±20% | 140 | 850 |
| 066602 | 10x12 | 170.0±20% | 310 | 350 |
| 069602 | 10x12 | 330.0±20% | 475 | 400 |
| 024501 | 10x12 | 525.0±20% | 575 | 425 |
| 039503 | 10x12 | 1000.0±20% | 1300 | 290 |
| 057603 | 10x12 | 1500.0±20% | 1500 | 250 |
| 049302 | 10x12 | 2200.0±20% | 3000 | 175 |
| 049202 | 10x12 | 3300.0±20% | 3750 | 100 |
| 049104 | 10x12 | 4600.0±20% | 5000 | 100 |
| 122401 | 10x12 | 10000.0±20% | 12000 | 90 |
