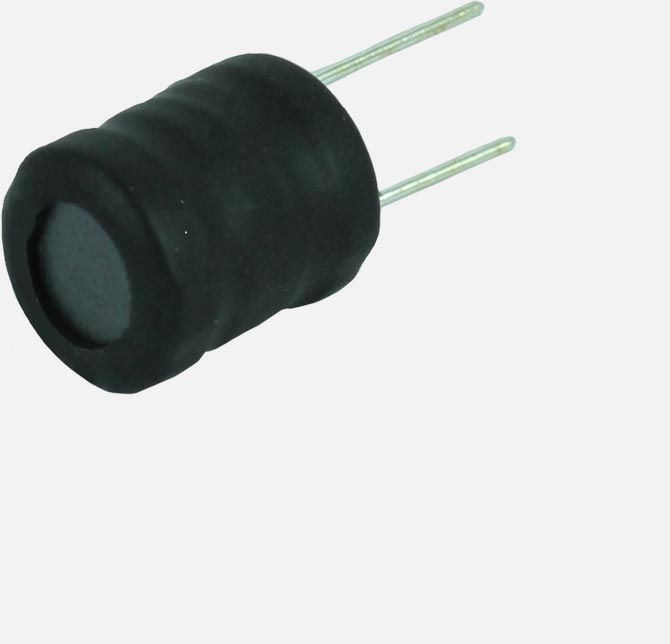

| PART # | DRUM CORE | INDUCTANCE @1KHZ 0.3V (µH) |
DC RESISTANCE @200°C (MΩ) (MAX) |
RATED CURRENT (RMS) (MA) |
|---|---|---|---|---|
| 062202 | 12x15 | 3±20% | 5.5 | 6000 |
| 063601 | 12x15 | 47±20% | 75.0 | 1500 |
| 061801 | 12x15 | 120±20% | 110.0 | 1600 |
