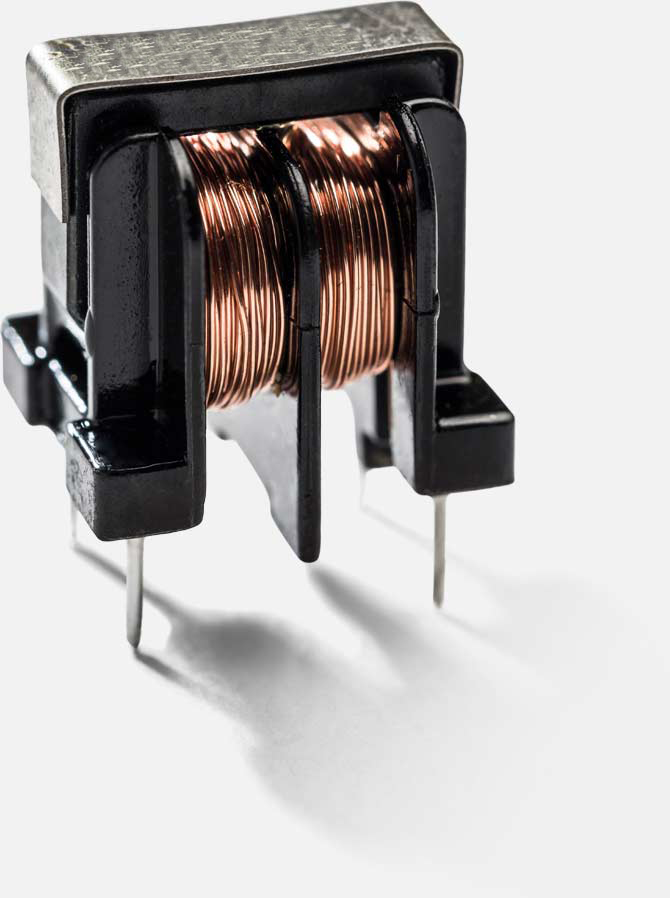

| PART # | ORDER CODE | INDUCTANCE (mH) (MIN) |
CURRENT RATING (mA) (STEADY STATE) |
LEAK INDUCTANCE (µH) (TYPICAL) |
DC RESISTANCE (Ω) (MAX) |
|---|---|---|---|---|---|
| 066901 | P20015 | 0.75 | 1.200 | 15 | 0.125 |
| 081801 | P20016 | 1.50 | 1.000 | 25 | 0.150 |
| 124001 | - | 1.50 | 2.000 | 25 | 0.140 |
| 081901 | P20017 | 2.20 | 0.750 | 40 | 0.225 |
| 090001 | P20018 | 3.00 | 0.600 | 55 | 0.350 |
| 075401 | P20019 | 5.60 | 0.500 | 105 | 0.575 |
| 014202 | P20020 | 8.20 | 0.400 | 150 | 0.870 |
| 084501 | P20021 | 12.00 | 0.300 | 240 | 1.500 |
| 013701 | P20022 | 22.00 | 0.250 | 330 | 2.250 |
| 068701 | P20023 | 39.00 | 0.200 | 700 | 3.200 |
| 079601 | P20024 | 47.00 | 0.175 | 800 | 4.100 |
| Isolation | At 50Hz / 4mA / 1 min |
| Between windings | 1500V AC |
| Windings to core | 1500V AC |
| Insulation Resistance | At 500V DC Greater than 100MΩ |
