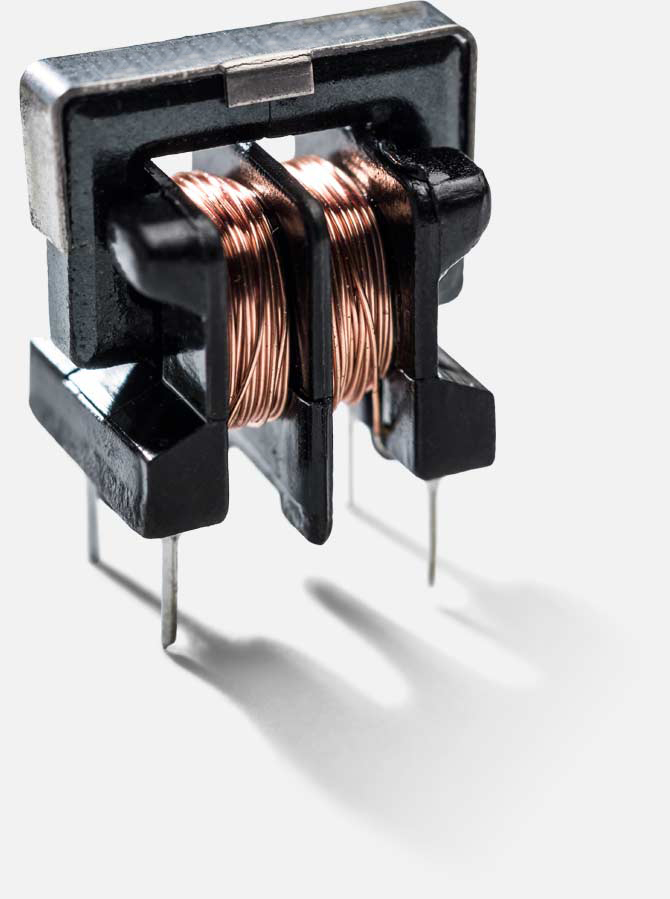

| PART # | ORDER CODE | INDUCTANCE (mH) (MIN) |
CURRENT RATING (mA) (STEADY STATE) |
LEAK INDUCTANCE (µH) (TYPICAL) |
DC RESISTANCE (Ω) (MAX) |
|---|---|---|---|---|---|
| 068801 | P20002 | 2.20 | 350 | 40 | 0.375 |
| 080401 | P20004 | 3.90 | 290 | 70 | 0.625 |
| 078501 | P20026 | 5.60 | 250 | 100 | 0.900 |
| 064801 | P20006 | 8.20 | 250 | 133 | 1.100 |
| 080501 | P20008 | 9.10 | 175 | 160 | 1.600 |
| 080601 | P20028 | 15.00 | 150 | 300 | 2.750 |
| 063301 | P20010 | 22.00 | 150 | 355 | 2.980 |
| 073502 | P20011 | 30.00 | 120 | 525 | 4.500 |
| 073501 | P20012 | 30.00 | 120 | 525 | 4.500 |
| 080701 | P20014 | 36.00 | 85 | 625 | 6.000 |
.svg)
| Isolation | At 50Hz / 4mA / 1 min |
| Between windings | 1500V AC |
| Windings to core | 1500V AC |
| Insulation Resistance | At 500V DC Greater than 100MΩ |
