Common Mode

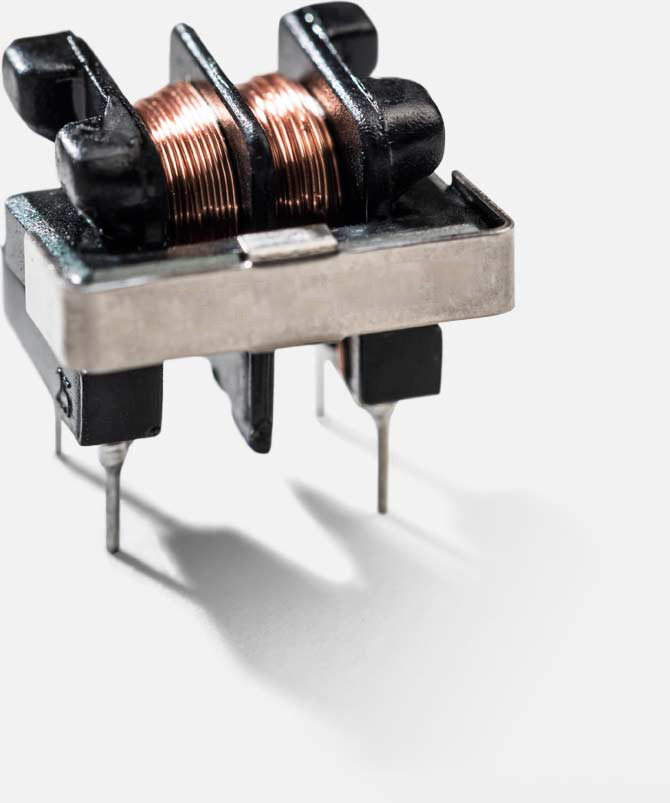

UU9.8 / 4P / HORIZONTAL

feature

UU9.8 / 4P / HORIZONTAL

    4 PINS
    HORIZONTAL BASE

TECH SPECS

PART # ORDER CODE INDUCTANCE
(mH) (MIN)
CURRENT RATING
(mA) (STEADY STATE)
LEAK INDUCTANCE
(µH) (TYPICAL)
DC RESISTANCE
(Ω) (MAX)
078502 P20001 2.20 350 40 0.375
064802 P20003 3.90 290 70 0.625
080502 P20025 5.60 250 100 0.900
080602 P20005 8.20 250 133 1.100
063302 P20007 9.10 175 160 1.600
080702 P20027 15.00 150 300 2.750
068802 P20009 22.00 150 355 2.980
080402 P20013 36.00 85 625 6.000


feature
Isolation At 50Hz / 4mA / 1 min
Between windings 1500V AC
Windings to core 1500V AC
Insulation Resistance At 500V DC
Greater than 100MΩ

Notes

  • RoHS 3 compliance is available on most products, subject to our confirmation.
  • Specifications subject to change without notice.
